Mapbox World Map

Intro

---

This tutorial walks through building a React + TypeScript app that renders a world map with Mapbox GL JS, powered by a Domo dataset. You’ll learn how to:

• Scaffold a Vite + React + TypeScript project with the DA CLI
• Upload a CSV to Domo and wire it to your app through manifest.json mapping
• Publish an initial design, create a proxy card, and link it to your local dev server
• Fetch mapped data with ryuu.js and render it as a GeoJSON circle layer in Mapbox
• Use a custom Mapbox style and scale point radius / color by a numeric field

The finished code is at DomoApps/mapbox-tutorial on GitHub.

Prerequisite: Complete the Setup and Installation guide and run domo login before starting.

Step 1: Install the DA CLI and scaffold the app

---

The DA CLI clones the @domoinc/vite-react-template — a Vite + React + TypeScript project preconfigured with the Domo proxy, ESLint, Prettier, Vitest, Storybook, and da generate scaffolding.

Install the CLI globally:

# pnpm (recommended)
pnpm add -g @domoinc/da

# or yarn
yarn global add @domoinc/da

# or npm
npm install -g @domoinc/da

Create the project:

da new mapbox-tutorial
cd mapbox-tutorial

da new prompts for a package manager (pick pnpm), clones the template, writes your app name, initializes git, and installs dependencies.

App names must be lowercase with hyphens only. Capitals, underscores, and periods are rejected.

Add the Mapbox runtime, the Domo JS client, and TypeScript types:

pnpm add mapbox-gl ryuu.js
pnpm add -D @types/mapbox-gl @types/geojson

Step 2: Get a Mapbox access token

---

If you don’t already have a Mapbox account, create one for free at account.mapbox.com/auth/signup. Your default public access token is on the account home screen. Copy it — you’ll paste it into the Map component in Step 6.

See Mapbox’s guide on access tokens for details on scoping and restricting tokens for production use.

Step 3: Upload a dataset to Domo

---

We need a dataset for the map to point at. Download World_Cities.csv from the sample repo (~47k rows with city, country, lat, lng, population).

In your Domo instance: Data → CONNECT DATA → Upload a spreadsheet, drag the CSV in, and save the dataset with defaults.

Once it’s uploaded, open the dataset and copy its dataset ID from the URL (the UUID after /datasources/). You’ll use it in the next step.

Step 4: Declare the dataset mapping

---

Dataset mappings tell Domo which dataset to supply to your app at runtime. The alias (geoData here) becomes the URL path your app queries; fields rename columns so your app code doesn’t care what the source column is called.

Replace public/manifest.json with:

{
  "name": "World Map App",
  "version": "0.0.1",
  "size": { "width": 3, "height": 3 },
  "fullpage": true,
  "mapping": [
    {
      "alias": "geoData",
      "dataSetId": "YOUR_DATASET_ID",
      "fields": [
        { "alias": "id", "columnName": "id" },
        { "alias": "city", "columnName": "city" },
        { "alias": "country", "columnName": "country" },
        { "alias": "lat", "columnName": "lat" },
        { "alias": "long", "columnName": "lng" },
        { "alias": "dataPoint", "columnName": "population" }
      ]
    }
  ]
}

Replace YOUR_DATASET_ID with the UUID from Step 3. Note that long is aliased from the source column lng — this is the power of aliases: your app code uses whatever shape is convenient.

Step 5: Publish the initial design and wire the proxy

---

Before local dev can query mapped data, Domo needs to know the app exists and be told which dataset to hand over to it.

pnpm upload

This runs pnpm build and domo publish from the build/ folder. The output prints a link to the new App Design.

Then, in the Domo UI:

1. Open the App Design link — or go to More → Asset Library and find your design.
2. Click New Card. A new card is what Domo uses to route dataset requests from your local dev server.
3. When prompted, select the dataset you uploaded in Step 3.
4. Save the card.

Copy two values from the App Design page:

• id — the design ID
• proxyId — the card ID your local dev server will proxy through

Add both to public/manifest.json:

{
  "id": "922c41e1-20c0-4c96-93b5-4bf398cb392c",
  "proxyId": "YOUR_PROXY_ID"
}

For multi-environment apps (dev/qa/prod), keep manifest.json clean and use da manifest to add overrides to src/manifestOverrides.json. da apply-manifest runs automatically as a prestart / prebuild hook.

Step 6: Build the Map component

---

Create src/components/Map/Map.module.scss:

.mapContainer {
  height: 100vh;
  width: 100vw;
}

Create src/components/Map/Map.tsx. This does four things: fetch the mapped dataset through ryuu.js, transform rows into display-ready points (radius + color scaled by population), initialize the Mapbox map, and add a GeoJSON circle layer on load.

import 'mapbox-gl/dist/mapbox-gl.css';

import mapboxgl from 'mapbox-gl';
import { FC, useEffect, useRef, useState } from 'react';
import domo from 'ryuu.js';

import styles from './Map.module.scss';

const POPULATION_LIMIT = 50_000;
const POINT_STEP = 100_000;
const COLORS = ['#8F1CCD', '#A221B9', '#E0329D', '#DF7B90', '#E8AD85'];

interface GeoRow {
  city: string;
  lat: number;
  long: number;
  dataPoint: number;
}

interface Point {
  name: string;
  latitude: number;
  longitude: number;
  radius: number;
  color: string;
}

const getPointRadius = (row: GeoRow): number => {
  const step = Math.min(
    Math.floor((row.dataPoint - POPULATION_LIMIT) / POINT_STEP),
    3,
  );
  return 1 + step * 0.2;
};

const getPointColor = (row: GeoRow): string => {
  const step = Math.min(
    Math.floor((row.dataPoint - POPULATION_LIMIT) / POINT_STEP),
    4,
  );
  return COLORS[step];
};

export const Map: FC = () => {
  const mapRef = useRef<mapboxgl.Map | null>(null);
  const mapContainerRef = useRef<HTMLDivElement | null>(null);
  const [points, setPoints] = useState<Point[]>([]);

  useEffect(() => {
    const fetchData = async () => {
      const response = (await domo.get(
        '/data/v1/geoData',
      )) as unknown as GeoRow[];
      setPoints(
        response.map((row) => ({
          name: row.city,
          latitude: row.lat,
          longitude: row.long,
          radius: getPointRadius(row),
          color: getPointColor(row),
        })),
      );
    };

    fetchData();
  }, []);

  useEffect(() => {
    if (points.length === 0 || !mapContainerRef.current) return;

    mapboxgl.accessToken = 'YOUR_MAPBOX_ACCESS_TOKEN';

    mapRef.current = new mapboxgl.Map({
      container: mapContainerRef.current,
      style: 'mapbox://styles/mapbox/light-v11',
      maxBounds: [
        [-230, -60],
        [230, 70],
      ],
    });

    mapRef.current.on('load', () => {
      const dataPoints: GeoJSON.FeatureCollection = {
        type: 'FeatureCollection',
        features: points.map((point) => ({
          type: 'Feature',
          geometry: {
            type: 'Point',
            coordinates: [point.longitude, point.latitude],
          },
          properties: {
            name: point.name,
            radius: point.radius,
            color: point.color,
          },
        })),
      };

      mapRef.current?.addSource('dataPoints', {
        type: 'geojson',
        data: dataPoints,
      });

      mapRef.current?.addLayer({
        id: 'circle-layer',
        type: 'circle',
        source: 'dataPoints',
        paint: {
          'circle-radius': ['get', 'radius'],
          'circle-color': ['get', 'color'],
          'circle-opacity': 0.7,
        },
      });
    });

    return () => {
      mapRef.current?.remove();
    };
  }, [points]);

  return <div className={styles.mapContainer} ref={mapContainerRef} />;
};

A few things worth calling out:

• domo.get('/data/v1/geoData') is the ryuu.js helper that queries whatever dataset the app’s proxyId is wired to. The path suffix (geoData) matches the alias you set in manifest.json.
• Two useEffects — one fetches data once, the second initializes the map when points arrive. Splitting them means the map isn’t rebuilt every render.
• GeoJSON + a circle layer is Mapbox’s idiomatic way to render thousands of points efficiently; the ['get', 'radius'] / ['get', 'color'] expressions read per-feature properties without needing a separate layer per color.
• maxBounds clips the map so users can’t pan endlessly into empty ocean or Antarctica.

Replace YOUR_MAPBOX_ACCESS_TOKEN with the token you copied in Step 2.

Step 7: Use a custom Mapbox style (optional)

---

The code above uses one of Mapbox’s built-in styles (mapbox://styles/mapbox/light-v11). If you want a fully custom look, export a style as JSON from Mapbox Studio and drop it next to the component as map-style.json, then swap the style option:

import rawMapStyle from './map-style.json';

// ...in the map init:
style: rawMapStyle as unknown as mapboxgl.StyleSpecification,

The sample repo ships a monochrome dark style (src/components/Map/map-style.json) you can use as a starting point.

Step 8: Wire up App.tsx and main.tsx

---

src/components/App/App.tsx just renders the map:

import { Map } from 'components/Map/Map';
import { FC } from 'react';

export const App: FC = () => <Map />;

The scaffold’s src/main.tsx already renders <App /> inside <Provider> — no change needed unless you want to strip Redux (not required for this app, but harmless to leave in place for future work).

Your final src/ tree:

src/
├── main.tsx
├── index.scss
└── components/
    ├── App/
    │   └── App.tsx
    └── Map/
        ├── Map.tsx
        ├── Map.module.scss
        └── map-style.json   (optional — custom style)

Step 9: Test locally

---

pnpm start

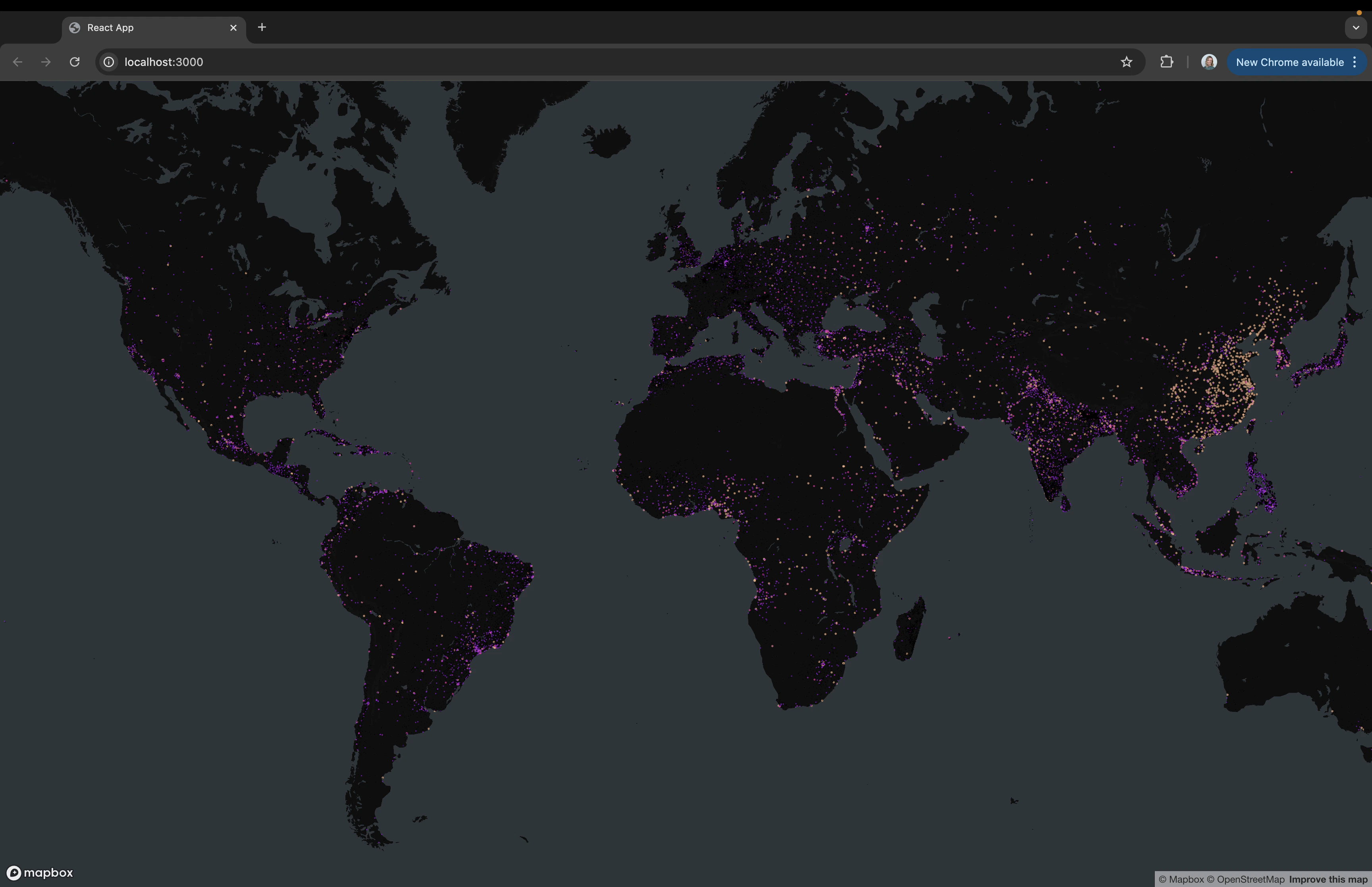

The Vite dev server starts on port 3000 (or 3001/3002 if busy). Because proxyId is set, domo.get('/data/v1/geoData') hits your real mapped dataset. You should see thousands of circles scattered across the world, sized and colored by city population.

Warning: If the map stays blank, check the browser console. A 401 from Mapbox means the access token is wrong or missing; a 404 from /data/v1/geoData means proxyId in manifest.json isn’t pointing at the card you created in Step 5.

Step 10: Publish

---

When you’re happy, publish the final version:

pnpm upload

The new build becomes the active design. Anyone instantiating the app from the Asset Library picks it up.

Next steps

---

• Add hover popups with mapboxgl.Popup to show city names and populations on click.
• Swap population for any numeric column by changing the dataPoint alias in manifest.json — no code change required.
• Layer in a second mapping (e.g. country boundaries) by adding another entry under mapping[] and querying /data/v1/<alias>.
• Continue with AI Book Recommender or Todo App with AppDB.
